4.0L (242) SMFI I6 "POWER TECH" ENGINE

• (STD)

• Four Wheel Drive
• Four Wheel Drive
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Temporary Spare Tire
• Steel Wheels
• Power Steering
• Front Disc/Rear Drum Brakes
• Convertible Soft Top
• Vinyl Seats
• Bucket Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• AM/FM Stereo
• Cassette
• Rollover Protection Bars
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicles
• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 500
• Maximum Alternator Capacity (amps): 81
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Base Curb Weight (lbs): 3294
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Suspension
• Suspension Type - Front: Solid Axle
• Suspension Type - Rear: Solid Axle
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9.0 x 2.5
• Tires
• Front Tire Order Code: TMS
• Rear Tire Order Code: TMS
• Front Tire Size: P215/75R15
• Rear Tire Size: P215/75R15
• Spare Tire Size: P225/75D15
• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): 15 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 33.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Exterior Dimensions
• Wheelbase (in): 93.4
• Length, Overall (in): 152.0
• Width, Max w/o mirrors (in): 66.7
• Height, Overall (in): 70.9
• Track Width, Front (in): 58.0
• Track Width, Rear (in): 58.0
• Min Ground Clearance (in): 7.9
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): 42.5
• Cargo Area Width @ Beltline (in): 57.5
• Cargo Box Width @ Wheelhousings (in): 35.6
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 38.9
• Cargo Volume to Seat 2 (ft³): 11.5
• Interior Dimensions
• Passenger Capacity: 4
• Passenger Volume (ft³): 51.4
• Front Head Room (in): 42.3
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 51.9
• Front Hip Room (in): 51.0
• Second Head Room (in): 40.6
• Second Leg Room (in): 34.9
• Second Shoulder Room (in): 57.3
• Second Hip Room (in): 43.5
• Summary

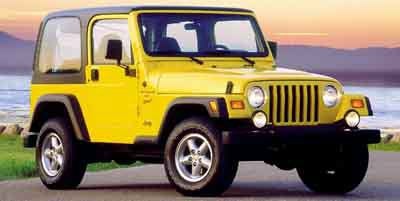

• Vehicle Name: Jeep Wrangler
• Body Style: 2 Door
